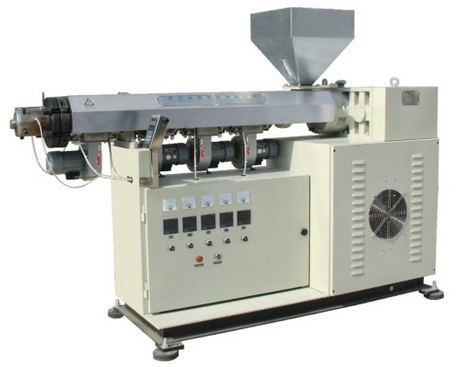

Full Automatic Plastic PVC Tube Extruder machine

  • SMT-1111
  • Smartell

Product Specification


PVC Tube Extruding and Cutting Machine Line

Product Specification

                                                                                                          The main technical parameters

Screw Diameter

Φ50MM

Operative Length of the Screw

1125mm

Screw Length- Diameter Ratio

28:1

Screw Rotating Speed

10-90r/min

Productive Capacity

15-35kg/h

Motor Power

11 kw

Heating Power (excluding machine head):

7kw

Product Description

PVC Tube Extruding and Cutting Machine Line

Product Description

 Plastic Extruder machine is for thermoplastic processing of all kinds of plastic, with various types of heads and auxiliary equipment and suitable screw, then it will make the soft or hard plastics such as PVC, polyethylene, polypropylene to be rods, tubes, belts, extrusion, blown film, drawing, wire and cable .



Our PVC extruder machine adopt the advance FUJI FRENIC frenquency converter, with stable performance , high efficiency, smooth screw rotating speed, low consumotion and large torque etc.
