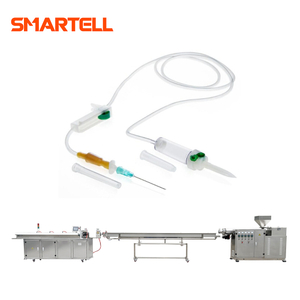

PVC Tube Extruding Machine
Brief Introduction
This equipment is for thermoplastic processing of all kinds of plastic tube, with types of heads and auxiliary equipment and suitable screw, then it will make the soft or hard plastics such as PVC, polyethylene, polypropylene to be rods, tubes, belts, extrusion, blown film, drawing, wire and cable.
Technical Parameter
Diameter of Screw | Φ50 mm |
L/D ratio of Screw | 28:1 |
Screw rotating speed | 10-80 r/min |
Output | 20-35 kg/h |
Power | 15-18.5 kw |
Working Voltage | 380 V |
Machine Size | 2100*620*1550 mm |
Weight | 600 kg |
Suitable production rage | wall thickness 0.3cm-3cm,diameter Φ2mm-Φ 20mm PVC conduit |
