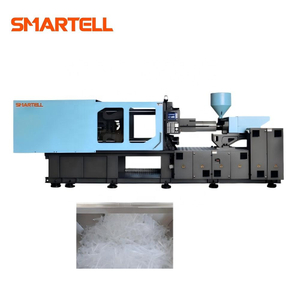

Plastic Injection Moulding Machine
Brief Introduction
It consists of plasticizing system, injection system, the clamping system and transmission system. Our company has been applying die casting technologies to injection moulding machines for many years, like in mechanical, hydraulic, electric control, etc for comprehensive improvement, perfect combination of dynamic pressure casting and speed.

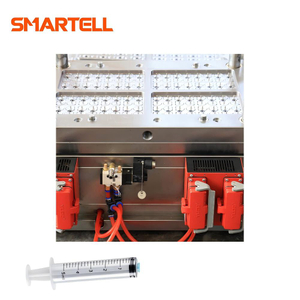

In order to improve the stability of syringe production, we specially add infrared heating coil to standard injection moulding machine. In addition, we recommend adding servo motor system, although the servo motor will increase the cost of injection moulding machine, servo motor system has the advantages of energy saving, in a long term production, it is more economic, so nowadays more and more companies choose servo motor system.
Technical Parameter
ITEM/ MODEL | UNIT | SMT-1016 168T | SMT-1020 208T | SMT-1025 258T | SMT-1028 288T | |||||||||
Screw Diameter | mm | 40 | 45 | 48 | 45 | 50 | 55 | 55 | 60 | 65 | 60 | 65 | 67 | |
Screw L/D Ratio | L/D | 22.5 | 20.3 | 19 | 23.1 | 20.6 | 18.7 | 21.5 | 19.7 | 18.2 | 21.7 | 20 | 19.4 | |
Clamping Force | KN | 1680 | 2080 | 2580 | 2880 | |||||||||
Opening Stroke | mm | 420 | 475 | 545 | 610 | |||||||||
Hydraulic Ejection | KN | 45 | 62 | 62 | 70 | |||||||||
Ejector Stroke | mm | 140 | 165 | 165 | 165 | |||||||||
Motor Power | KW | 15 | 18.5 | 22 | 30 | |||||||||
Heater | KW | 10 | 16 | 18 | 18 | |||||||||
Machine Dimension | m | 5.2x1.3x2.1 | 5.7x1.4x2.3 | 6.3x1.5x2.3 | 6.5x1.6x2.2 | |||||||||
Machine Weight | t | 4.8 | 6.6 | 7.8 | 8.5 | |||||||||
